UPS Battery Replacement

Page Overview: Shortcut links



1.-UPS Battery Cross-Reference Guide:

Keyitec offers C&D, Deka, Enersys, Fiamm, CSB batteries w/ installation and PM services

Deka FIAMM C&D Enersys CSB
45HR2000 12FLX200 UPS12-210MR 12HX205 HRL12280W
HR3000 12FLX300 UPS12-300MR 12HX300 HRL12330W
HR3500 12FLX350 UPS12-350MR 12HX330 HRL12330W
HR4000 12FLX400 UPS12-400MR 12HX400 HRL12390W
31HR5000 12FLX500 UPS12-490MR 12HX505 HRL12540W
HR5500 12FLX540 UPS12-540MR 12HX540 HRL12540W
12FLX700 UPS12-600MR

  [Request a quote]


Front End Batteries
Deka C&D Enersys
HR3500ET UPS12-355MRF
HR5500ET 16HX550F-FR: 16VDC
HR7000ET UPS12-680MRF 16HX800F-FR: 16VDC
HR7500ET UPS12-745MRF 16HX800F-FR: 16VDC
16HX925F-FR: 16VDC

  [Request a quote]



2.-UPS Battery Services:

Keyitec provides

  [Request a quote]

  New UPS batteries for almost any UPS brands and sizes at a competitive price.

UPS Battery Replacement Keyitec can provide you with VRLA batteries for most single and 3-phase UPS's:
  • Liebert/Vertiv
  • Mitsubishi
  • Toshiba
  • Eaton
  • Schneider
  • GE . . .
  • We offer C&D, Fiamm, Deka, Enersys, CSB batteries ( refer to table at the top of the page for details)
  • [Request a quote]
  • For information on flooded/wet UPS batteries and quotes, please e-mail us at info@keyitec.com


[Back to Top]



3.-BACS/Generex: cost effective battery monitoring & conditioning system and thermal runaway prevention:

BACS on VRLA batteries Keyitec offers the BACS system and its Managed Services:
  • The BACS/Generex Battery Monitoring & Conditioning System continuously and securely collects detailed data on battery performance; it is cost effective and easy to install. The BACS is comprised of two components: the BACS module and the WebManager/Controller which also provide accurate data to determine the health of each battery including:
    • Voltage (measured continuously)
    • Resistance (measured once a day)
    • Temperature of each battery (measured continuously)
    • Power outages (voltage measured continuously)
    • Float current (optional)
    • Conditioning of each battery: each battery is maintained at nominal/manufacturer specified voltage (no more undercharging or overcharging)
      • which extends the battery service life significantly
      • allows to only replace batteries that are failing (extended service life)
      • allows old and new batteries within the same string w/o negative effects
      • prevents full string replacement (improved ROI)

  • Embedded in the BACS hardware components is the ability to deliver remote, web-based reporting and human analysis. The BACS system monitors the health of every battery and the health of the monitoring system itself.
    • It polls each battery in every battery string in each facility, every day.
    • Complemented by the Keyitec team of battery experts which offer unlimited support and notification in advance of battery trends that may result in failure, your operation is assured of 100% uptime.
    • Included with the BACS is complete asset management of the battery system down to detailed history and replacement records of each unit

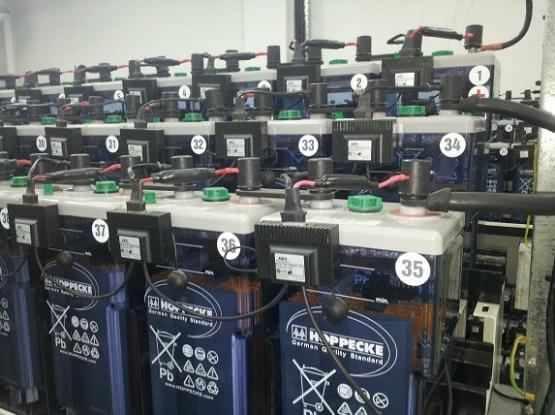

BACS on flooded batteries
  • BACS your monitoring solution
    • daily polling and trending analysis of every battery and string, including battery voltage, resistance and temperature of each battery
    • detects trends, failing battery and sends an alarm
    • reduces battery maintenance cost, extends battery life by 50%+ for maximum ROI


[Back to Top]



Request for Quotation - UPS Batteries/UPS Battery Cabinets/Battery PM/BACS Battery Monitoring
Your name: Your company name:
Your e-mail: Your Phone Number:

I request a quote for:

Current UPS Battery Model or P/N:

Number of existing batteries:

UPS Model and kVA/kW size:

UPS DC Bus Voltage

Minimum run time in minutes required:

Destination Zip code for freight charges:

Additional Comments:
