Toshiba 3-Phase Uninterruptible Power Supplies

Toshiba 3-Phase UPS's	We offer Geist DCIM Solutions
Page Overview: Shortcut links Toshiba 4400 series: 15 to 100kVA Toshiba 5000 series: 20, 30 & 50kVA Toshiba G9000 series: 100 to 2000kVA - up to 12000kVA

1.- Toshiba UPS's: 3-phase True On Line Double Conversion units 15kVA to 100kVA (model 4400)

Toshiba Uninterruptible Power Supplies 4400 Series 15 to 80kVA

Toshiba Uninterruptible Power Supplies: 4400 series 15kVA to 100kVA w/ internal batteries

optional internal batteries and/or external battery cabinet

optional input and/or output transformer

optional dual feed

3-year warranty, parts and labor

optional RemotEye4 Network Adapter

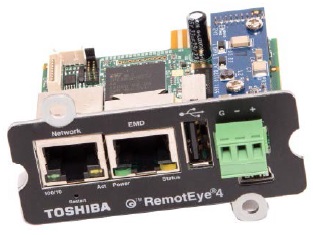

RemotEye4 Multi-Protocol UPS Manager

compatible w/ Toshiba 1600XP, 1600XPi, 4400, 5000, G9000 UPS's

New batteries for Toshiba Uninterruptible Power Supplies: Typically batteries need to be replaced after 3 to 5 years of operation

2.- Toshiba UPS's: 3-phase True On Line Double Conversion units 20kVA, 30kVA & 50kVA (model 5000)

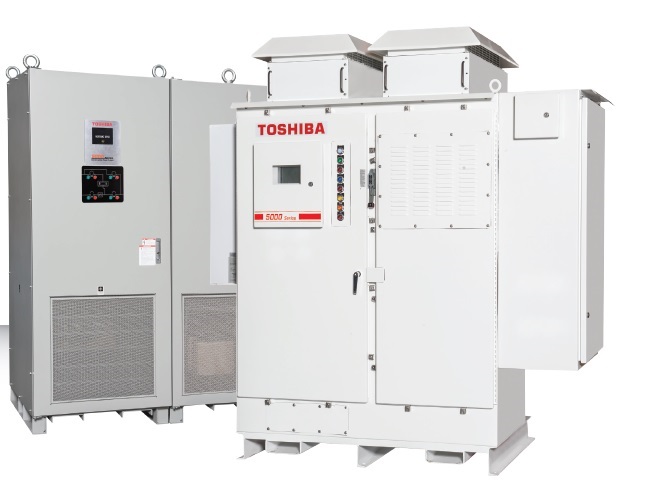

Toshiba Uninterruptible Power Supplies: 5000 series 20kVA, 30kVA & 50kVA

True Online Double-Conversion

50kVA Model 3P1: 480 3-phase input, 120 single-phase output

20kVA & 30kVA Models N3R: 480in/out 3-phase or 208in/out 3-phase

0.9 Output Power Factor

3-year warranty, parts and labor

4.- Next Generation Toshiba UPS's: Multi-Module 3-phase True On Line Double Conversion units 100kVA to 2000kVA (model G9000)

The new G9000 Uninterruptible Power Supplies provide the most efficient solution for today's demanding data centers (highest efficiency (97% even at low loads), smallest foot print), expansion up to 8 UPS's is possible without UPS modification (up to 4 units in parallel for 80kVA, 100kVA, 160kVA & 225kVA units, up to 8 units in parallel for 300kVA, 500kVA, 750kVA & 1000kVA units)

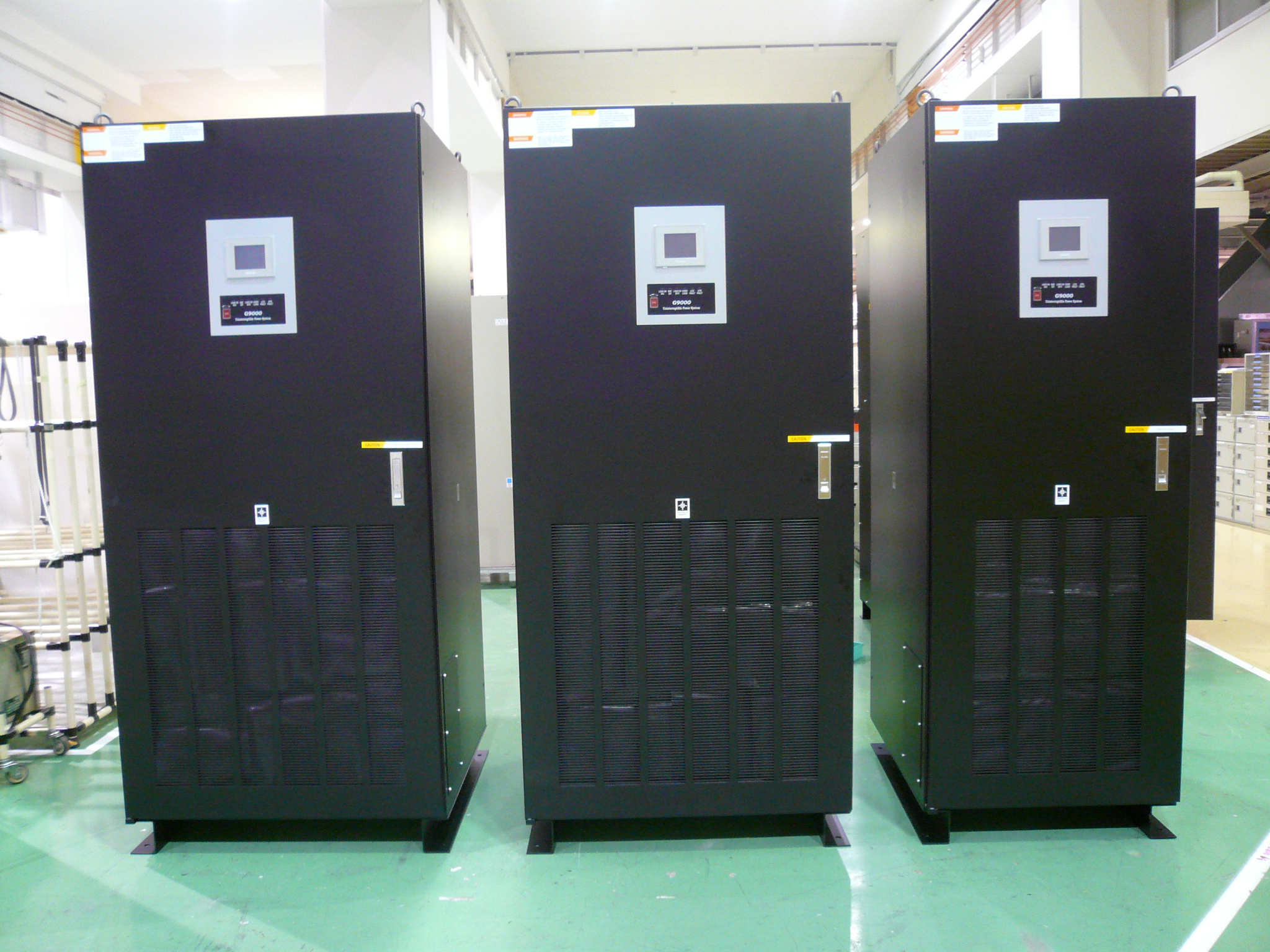

Toshiba Uninterruptible Power Supplies G9000 Series: 225kVA, 160kVA, 100kVA units

Toshiba Uninterruptible Power Supplies: single module G9000 series 100kVA to 2000kVA

The new G9000 series are well suited for data centers (highest efficiency, smallest foot print)

highest efficiency on the market today - 97% even at very low loads
smallest foot print (transformerless design: 480in/480out)
new generation of IGBT's for rectifier and inverter
lower cost than similar kVA units
100kVA to 225kVA @ 0.9pf
300kVA, 500kVA, 750kVA, 1000kVA, 1330kVA, 1500kVA, 1660kVA, 2000kVA @ 1.0pf
can be paralleled to up to 12MVA
- scalability for capacity and redundancy up to l2MVA
- parallel control circuits in each UPS
- static bypass on each UPS
- tie cabinet includes output breaker for each UPS, overall external system maintenance bypass
3-year warranty, parts and labor for lower cost of ownership
matching battery cabinets and/or DC flywheels, bypass cabinets and PDU's
